Centrifugal Casting Service

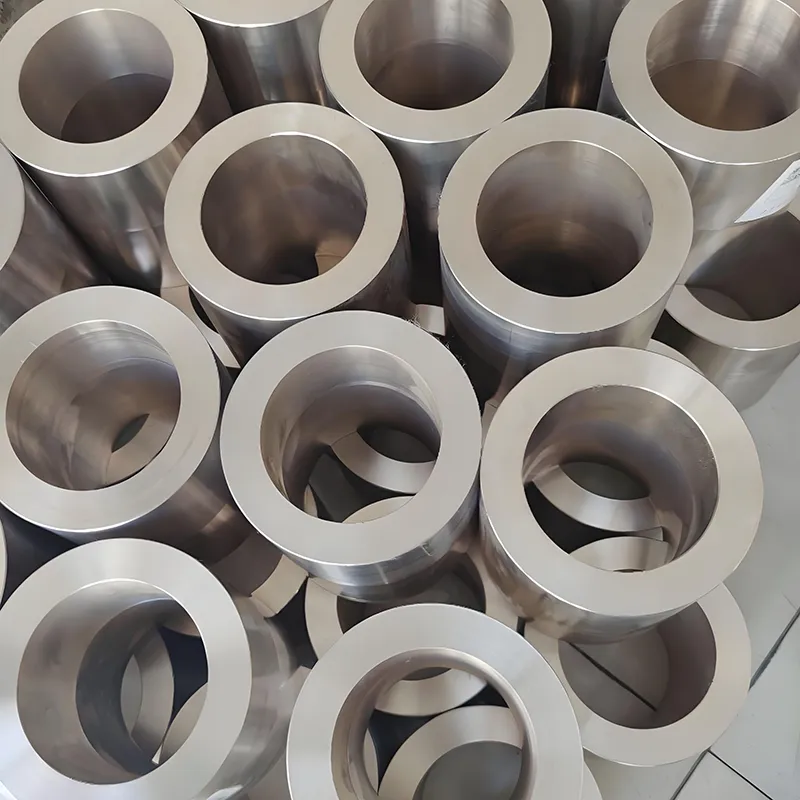

When seeking high-integrity, dense metal components for demanding applications, centrifugal casting is often the premier manufacturing choice. This advanced process utilizes centrifugal force to produce parts with superior mechanical properties, minimal porosity, and excellent dimensional accuracy. Our specialized Brass Centrifugal Casting service is ideal for creating robust components like bearings and bushing shells. For applications requiring precise cylindrical forms, our Brass Sleeve Castings offer unmatched wear resistance and structural soundness. Power transmission systems benefit from the durability of our Brass Casting Worm Gears, known for their precise tooth profiles and strength. For superior thermal and electrical conductivity, our Copper Centrifugal Casting produces high-quality tubes, rings, and cylinders critical for electrical and industrial machinery.

Our <产品名字> stands out due to our rigorous control over every production variable. We operate a range of horizontal and vertical centrifugal casting machines capable of handling diverse part sizes and alloy specifications. The process begins with precise mold preparation and controlled melting of the selected alloy. The molten metal is then poured into a rapidly spinning mold, where centrifugal force pushes it firmly against the mold wall, creating a dense, homogeneous structure free from common casting defects like gas pockets and shrinkage cavities. This results in components with enhanced grain structure, superior yield strength, and excellent pressure integrity, making them suitable for the most challenging operational environments.

Key Process Parameters & Capabilities

• Alloy Range: Specializes in copper-based alloys including various brasses (C83600, C85700, C86400), bronzes (C93200, C95400), and pure coppers.
• Diameter Range: Produces cylindrical parts with inner diameters from 50mm (2") up to 1500mm (60").
• Length Capacity: Maximum cast length of 6000mm (236") for long tubular components.
• Wall Thickness: Achieves consistent walls from 5mm (0.2") to 150mm (6").
• Tolerance Standards: Holds tight dimensional tolerances as per ISO 8062 CT7-9, with inner diameter finishes often suitable for direct use.
• Post-Casting Operations: Full in-house support including machining, boring, turning, grinding, and non-destructive testing (NDT).
